Linear Transformations

David M. Lane

Prerequisites

None

Learning Objectives
1. Give the formula for a linear transformation
2. Determine whether a transformation is linear
3. Describe what is linear about a linear transformation

Often it is necessary to transform data from one measurement scale to another. For example, you might want to convert height measured in feet to height measured in inches. Table 1 shows the heights of four people measured in both feet and inches. To transform feet to inches, you simply multiply by 12. Similarly, to transform inches to feet, you divide by 12.

Table 1. Converting between feet and inches.
Feet Inches
5.00
6.25
5.50
5.75
60
75
66
69

Some conversions require that you multiply by a number and then add a second number. A good example of this is the transformation between degrees Centigrade and degrees Fahrenheit. Table 2 shows the temperatures of 5 US cities in the early afternoon of November 16, 2002.

Table 2. Temperatures in 5 cities on 11/16/2002.
Houston
Chicago
Minneapolis
Miami
Phoenix
54
37
31
78
70
12.22
2.78
-0.56
25.56
21.11

The formula to transform Centigrade to Fahrenheit is:

F = 1.8C + 32

The formula for converting from Fahrenheit to Centigrade is

C = 0.5556F - 17.778

The transformation consists of multiplying by a constant and then adding a second constant. For the conversion from Centigrade to Fahrenheit, the first constant is 1.8 and the second is 32.

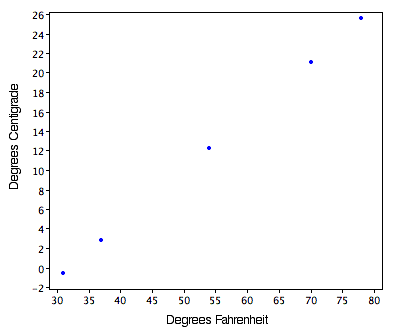

Figure 1 shows a plot of degrees Centigrade as a function of degrees Fahrenheit. Notice that the points form a straight line. This will always be the case if the transformation from one scale to another consists of multiplying by one constant and then adding a second constant. Such transformations are therefore called linear transformations.

Figure 1. Degrees Centigrade as a function of degrees Fahrenheit.

Many transformations are not linear. With nonlinear transformations, the points in a plot of the transformed variable against the original variable would not fall on a straight line. Examples of nonlinear transformations are: square root, raising to a power, logarithm, and any of the trigonometric functions.
