Difference Between Two Means (Correlated Pairs)


David M. Lane


Hypothesis Testing, Testing a Single Mean, Values of the Pearson Correlation, t Distribution, Difference Between Two Means (Independent Groups)

Learning Objectives
  1. Determine whether you have correlated pairs or independent groups
  2. Compute a t test for correlated pairs

Let's consider how to analyze the data from the "ADHD Treatment" case study. These data consist of the scores of 24 children with ADHD on a delay of gratification (DOG) task. Each child was tested under four dosage levels. In this section, we will be concerned only with testing the difference between the mean of the placebo (D0) condition and the mean of the highest dosage condition (D60). The first question is why the difference between means should not be tested using the procedure described in the section Difference Between Two Means (Independent Groups). The answer lies in the fact that in this experiment we do not have independent groups. The scores in the D0 condition are from the same subjects as the scores in the D60 condition. There is only one group of subjects, each subject being tested in both the D0 and D60 conditions.

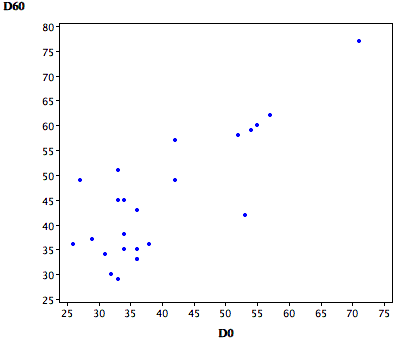

Figure 1 shows a scatter plot of the 60-mg scores (D60) as a function of the 0-mg scores (D0). It is clear that children who get more correct in the D0 condition tend to get more correct in the D60 condition. The correlation between the two conditions is high: r = 0.80. Clearly these two variables are not independent.

Figure 1. Number of correct responses made in the 60-mg condition as a function of the number of correct responses in the 0-mg condition.


You may recall that the method to test the difference between these means was presented in the section on "Testing a Single Mean." The computational procedure is to compute the difference between the D60 and the D0 conditions for each child and test whether the mean difference is significantly different from 0. The difference scores are shown in Table 1. As shown in the section on testing a single mean, the mean difference score is 4.96 which is significantly different from 0: t = 3.22, df = 23, p = 0.0038. This t test has various names including "correlated t test" and "related-pairs t test."

In general, the correlated t test is computed by first computing the difference between the two scores for each subject. Then, a test of a single mean is computed on the mean of these difference scores.

Table 1. DOG scores as a function of dosage.

D0 D60 D60-D0
57 62 5
27 49 22
32 30 -2
31 34 3
34 38 4
38 36 -2
71 77 6
33 51 18
34 45 11
53 42 -11
36 43 7
42 57 15
26 36 10
52 58 6
36 35 -1
55 60 5
36 33 -3
42 49 7
36 33 -3
54 59 5
34 35 1
29 37 8
33 45 12
33 29 -4

If you had mistakenly used the method for an independent-groups t test with these data, you would have found that t = 1.42, df = 46, and p = 0.15. That is, the difference between means would not have been found to be statistically significant. This is a typical result: correlated t tests almost always have greater power than independent-groups t tests. This is because in correlated t tests, each difference score is a comparison of performance in one condition with the performance of that same subject in another condition. This makes each subject "their own control" and keeps differences between subjects from entering into the analysis. The result is that the standard error of the difference between means is smaller in the correlated t test and, since this term is in the denominator of the formula for t, results in a larger t.

Details about the Standard Error of the Difference between Means (Optional)

To see why the standard error of the difference between means is smaller in a correlated t test, consider the variance of difference scores. As shown in the section on the Variance Sum Law, the variance of the sum or difference of the two variables X and Y is:

Therefore, the variance of difference scores is the variance in the first condition (X) plus the variance in the second condition (Y) minus twice the product of (1) the correlation, (2) the standard deviation of X, and (3) the standard deviation of Y. For the current example, r = 0.80 and the variances and standard deviations are shown in Table 2.

Table 2. Variances and Standard Deviations.

  D0 D60 D60 - D0
Variance 128.02 151.78 56.82
Sd 11.31 12.32 7.54

The variance of the difference scores of 56.82 can be computed as:

128.02 + 151.78 - (2)(0.80)(11.31)(12.32)

which is equal to 56.82 except for rounding error. Notice that the higher the correlation, the lower the standard error of the mean.
