Learning Objectives

If you are having problems with Java security, you might find this page helpful.

Learning Objectives

- Understand what it means for a scale to be ordinal and its relationship to interval scales.
- Determine whether an investigator can be misled by computing the means of an ordinal scale.

**
Instructions**

This is a demonstration of a very complex issue. Experts in the field disagree on how to interpret differences on an ordinal scale, so do not be discouraged if it takes you a while to catch on. In this demonstration you will explore the relationship between interval and ordinal scales. The demonstration is based on two brands of baked goods.

The data on the left side labeled "interval scores" shows the amount of sugar in each of 12 products. The column labeled "Brand 1" contains the sugar content of each of 12 brand-one products. The second column ("Brand 2") shows the sugar content of the brand-two products. The amount of sugar is measured on an interval scale.

A rater tastes each of the products and rates them on a 5-point "sweetness" scale. Rating scales are typically ordinal rather than interval.

The scale at the bottom shows the "mapping" of sugar content onto the ratings. Sugar content between 37 and 43 is rated as 1, between 43 and 49, 2, etc. Therefore, the difference between a rating of 1 and a rating of 2 represents, on average a "sugar difference" of 6. A difference between a rating of 2 and a rating of 3 also represents, on average a "sugar difference" of 6. The orginal ratings are rounded off and displayed are on an interval scale. It is likely that rater's ratings would not be on an interval scale. You can change the cutoff points between ratings by moving the vertical lines with the mouse. As you change these cutoffs, the ratings change automatically. For example, you might see what the ratings would look like if people did not consider something very sweet (rating of 5) unless it was very very sweet.

The mean amount of sugar in Dataset 1 is 50 for the first brand and 55 for the second brand. The obvious conclusion is that, on average, the second brand is sweeter than the first. However, pretend that you only had the ratings to go by and were not aware of the actual amounts of sugar. Would you reach the correct decision if you compared the mean ratings of the two brands. Change the cutoffs for mapping the interval sugar scale onto the ordinal rating scale. Do any mappings lead to incorrect interpretations? Try this with Data Set 1 and with Data Set 2. Try to find a situation where the mean sweetness rating is higher for Brand 2 even though the mean amount of sugar is greater for Brand 1. If you find such a situation, then you have found an instance in which using the means of ordinal data lead to incorrect conclusions. It is possible to find this situation, so look hard.

Keep in mind that in realistic situations, you only know the ratings and not the "true" interval scale that underlies them. If you knew the interval scale, you would use it.

**Illustrated Instructions**

Video Demo

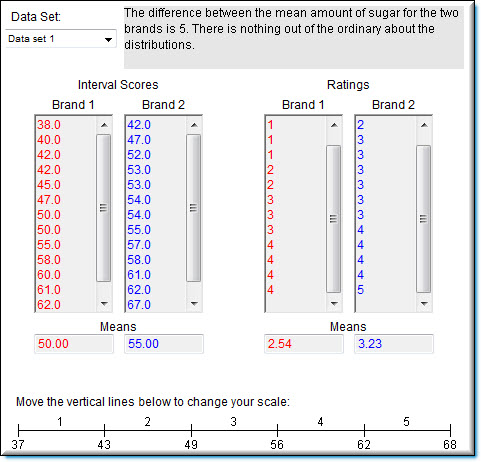

Below is a screen shot of the simulaton. The data on the right shows the sugar content of 12 products from each of two brands (interval scale). The two colums on the right show a rater's ratings for the same products (ordinal scale).

You can change datasets by selecting one from the menu in the top left and change the cutoffs by dragging the vertical lines at the bottom of the screen.

**Video Demo**

The video example below shows how to change the cuttoffs. Specifically cutoff "43" is dragged left to "40" and cuttoff "56" is dragged right to "58". Notice the changes in mean ratings for both brands.

We recommend you answer the questions even if you have to guess. Then use the simulation to help you verify your answers. After interacting with the simulation click the "Check Answer" button.

Questions will appear here:

feedback

"Drag" the vertical lines on the ordinal scale to change its cutoff points. As you drag, you should notice that the means for the ordinal scale. Can you change the scale in such a way that Brand 1 has a higher mean than Brand 2.
